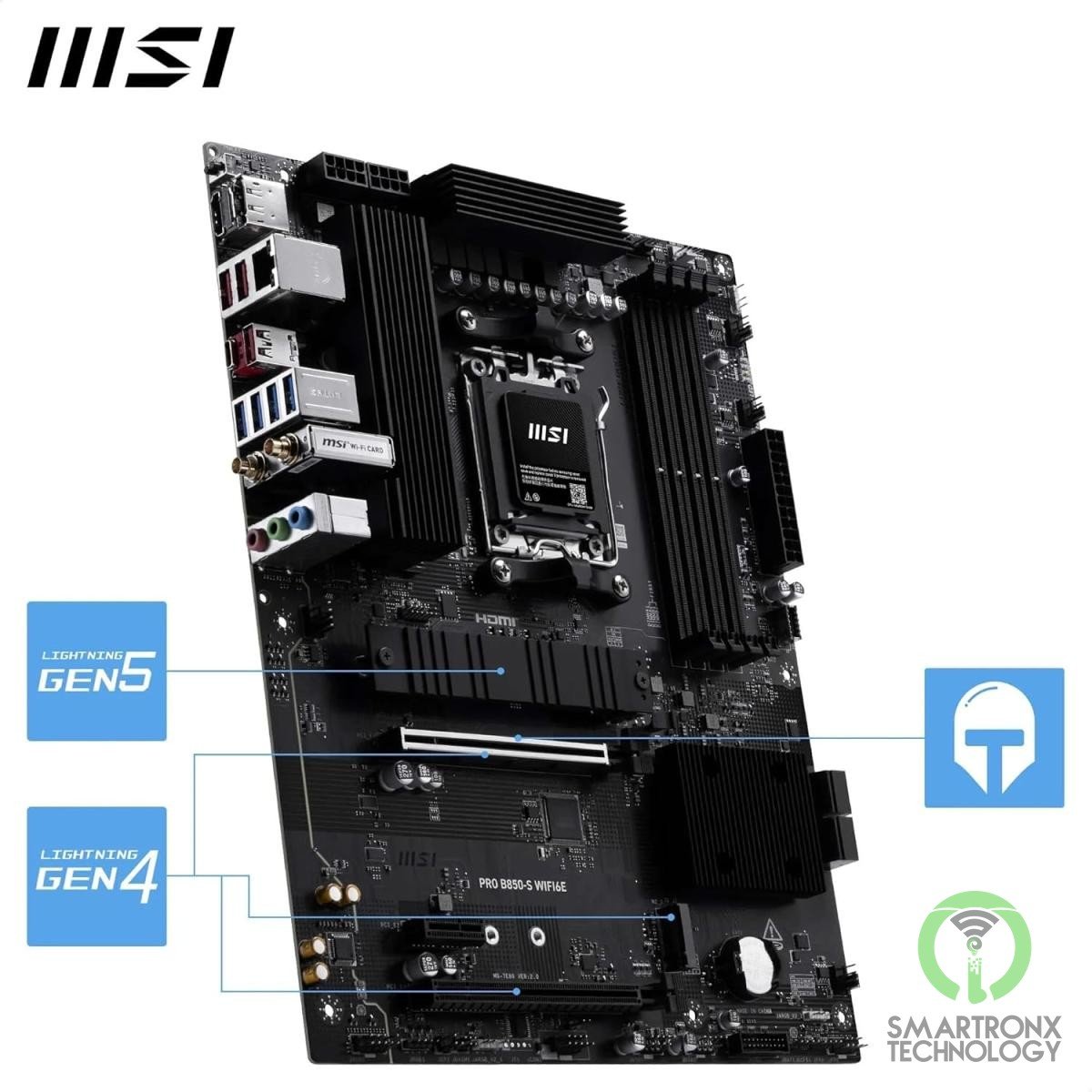

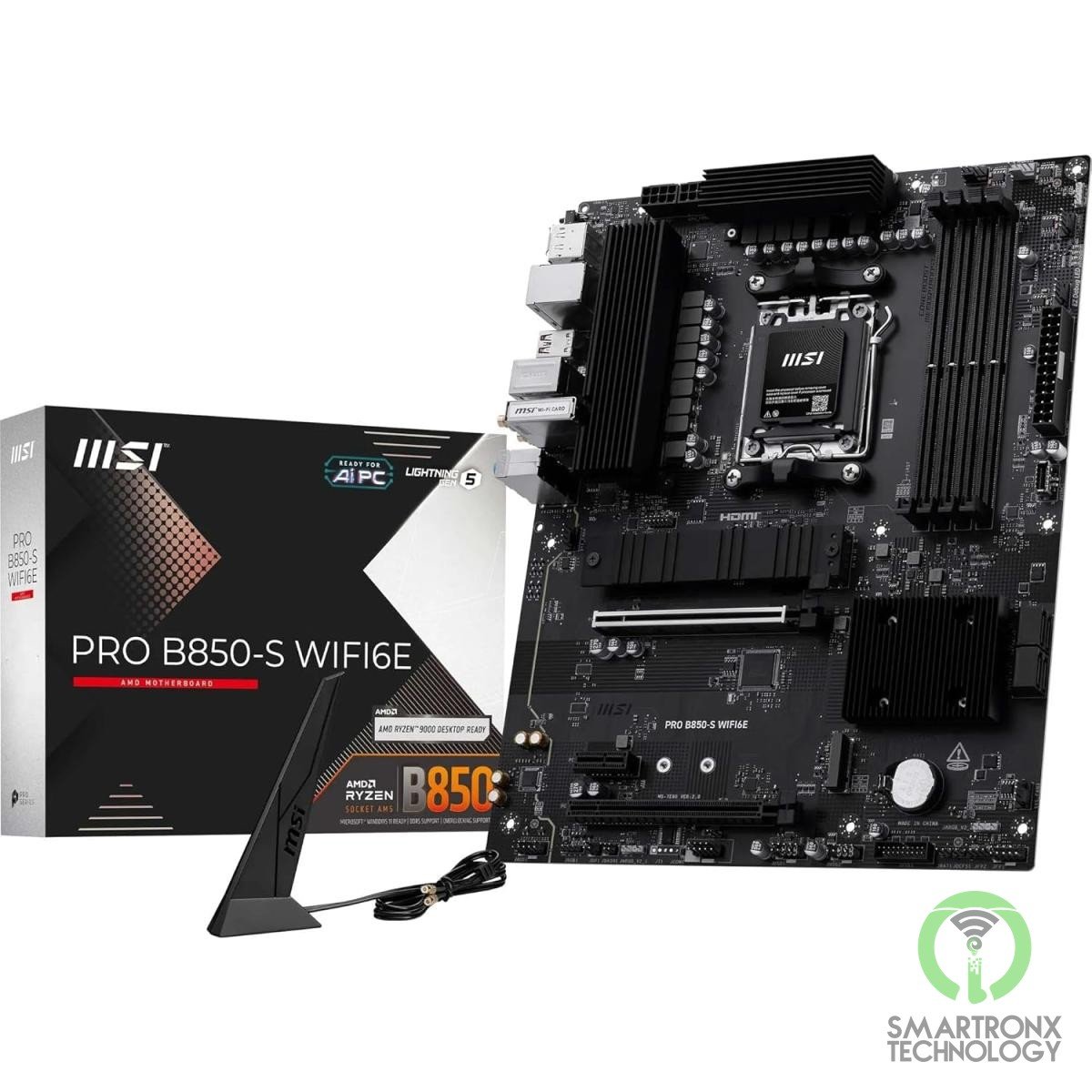

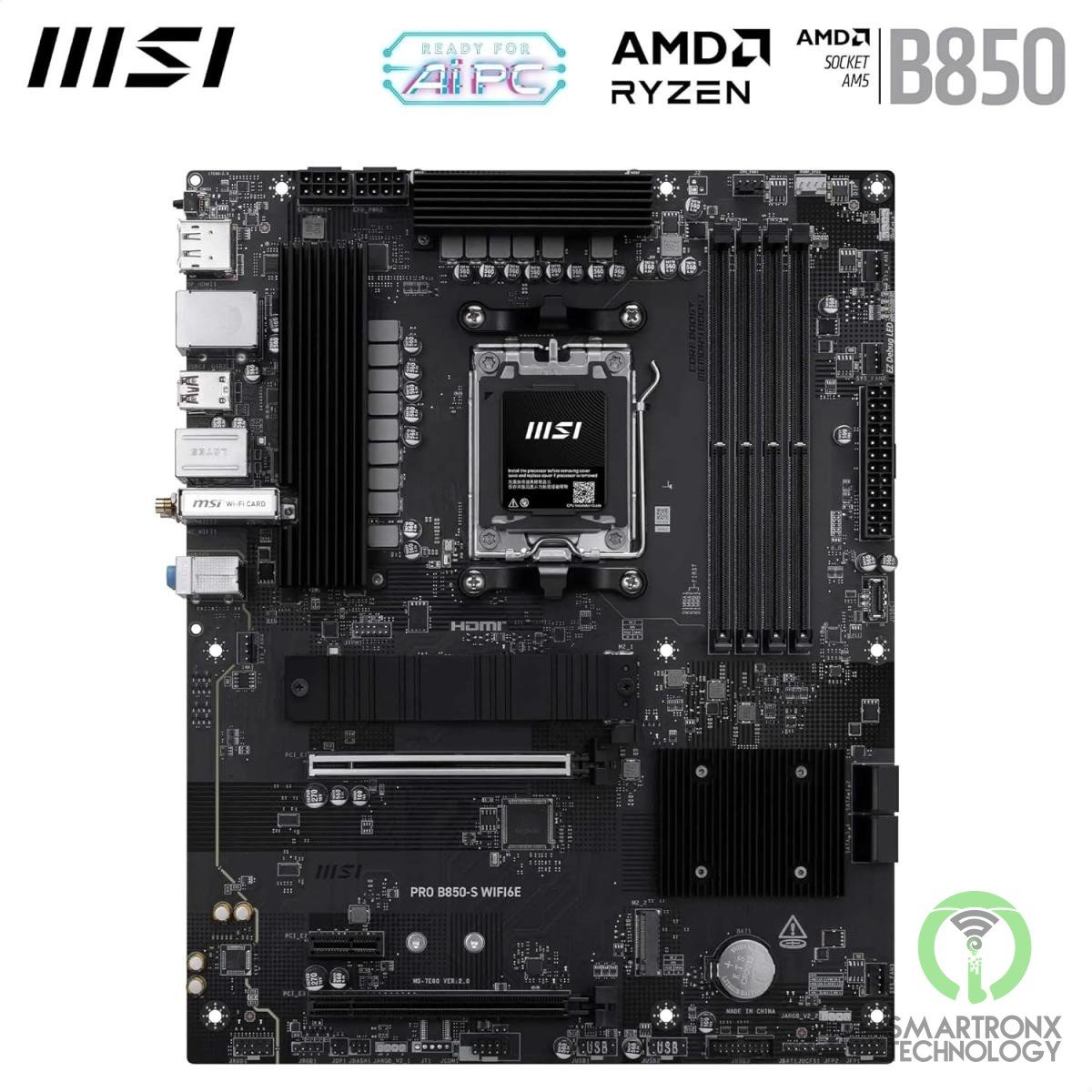

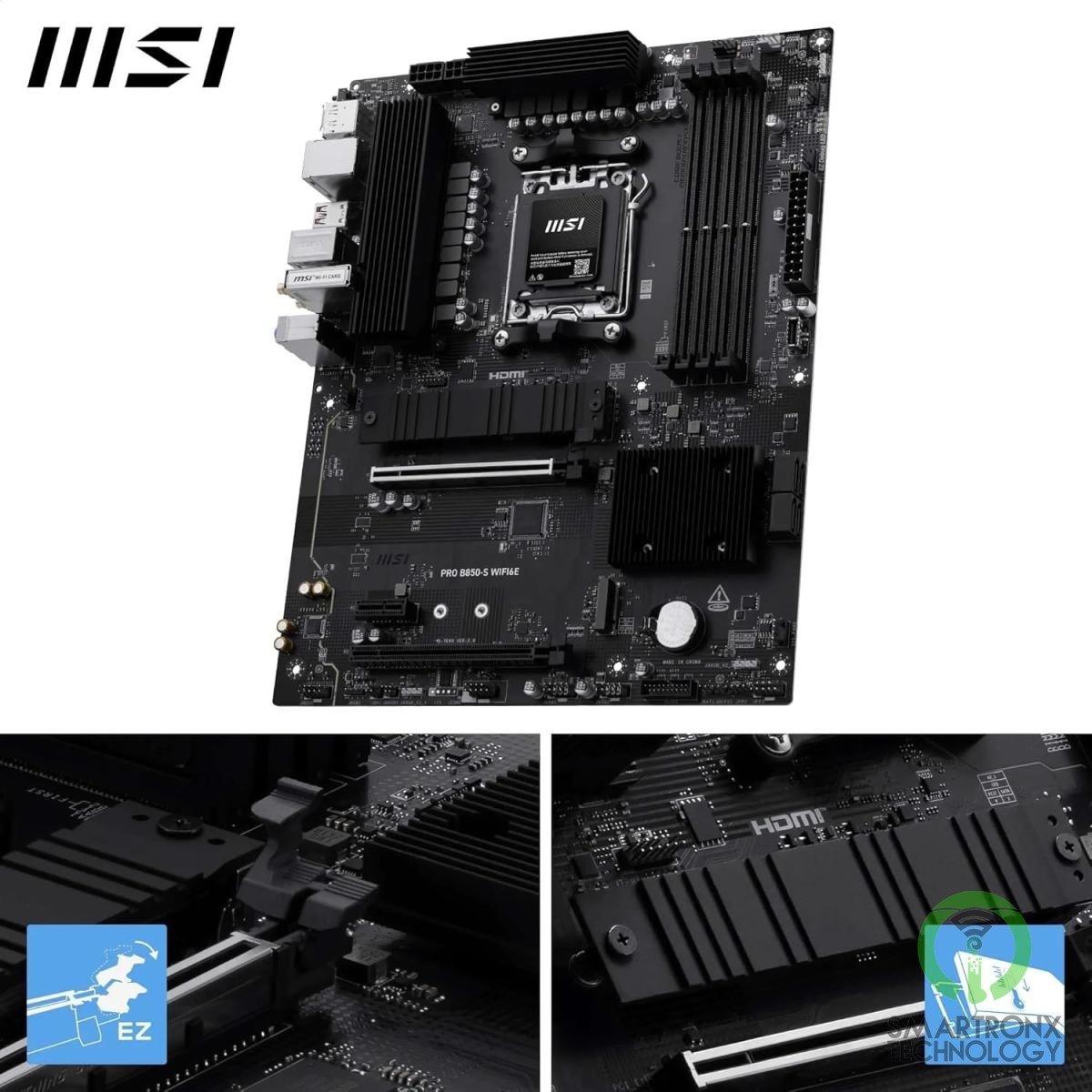

MSI PRO B850-S WIFI6E , ATX – Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5 – DDR5 , Wi-Fi 6E, 2.5G LAN: MSI PRO B850-S WIFI6E ATX motherboard with AMD B850, AM5, DDR5, PCIe 5.0 M.2, 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3 and USB 10Gbps Type-C.
المواصفات / Specifications
| Component | Specification |
| الشركة / Brand | MSI |
| الموديل / Model | PRO B850-S WIFI6E |
| الشرائح / Chipset | AMD B850 |
| CPU Socket | AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Power Design | 12+2+1 Duet Rail Power System |
| CPU Power | 2 × 8-pin CPU power connectors |
| Memory Slots | 4 × DDR5 UDIMM |
| Maximum Memory | 256GB |
| Memory Support | DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s |
| Memory Features | AMD EXPO, memory overclocking, Dual-Channel, Non-ECC Un-buffered memory, CUDIMM support in Clock Driver bypass mode |
| Expansion Slots | 2 × PCIe x16, 1 × PCIe x1 |
| Primary PCIe Slot | PCIe 4.0 up to x16 from CPU; lane configuration depends on installed processor |
| Additional PCIe Slots | 1 × PCIe 4.0 x4, 1 × PCIe 3.0 x1 |
| M.2 Storage | 2 × M.2; M.2_1 up to PCIe 5.0 x4, M.2_2 up to PCIe 4.0 x4 depending on processor |
