لوحة أم.

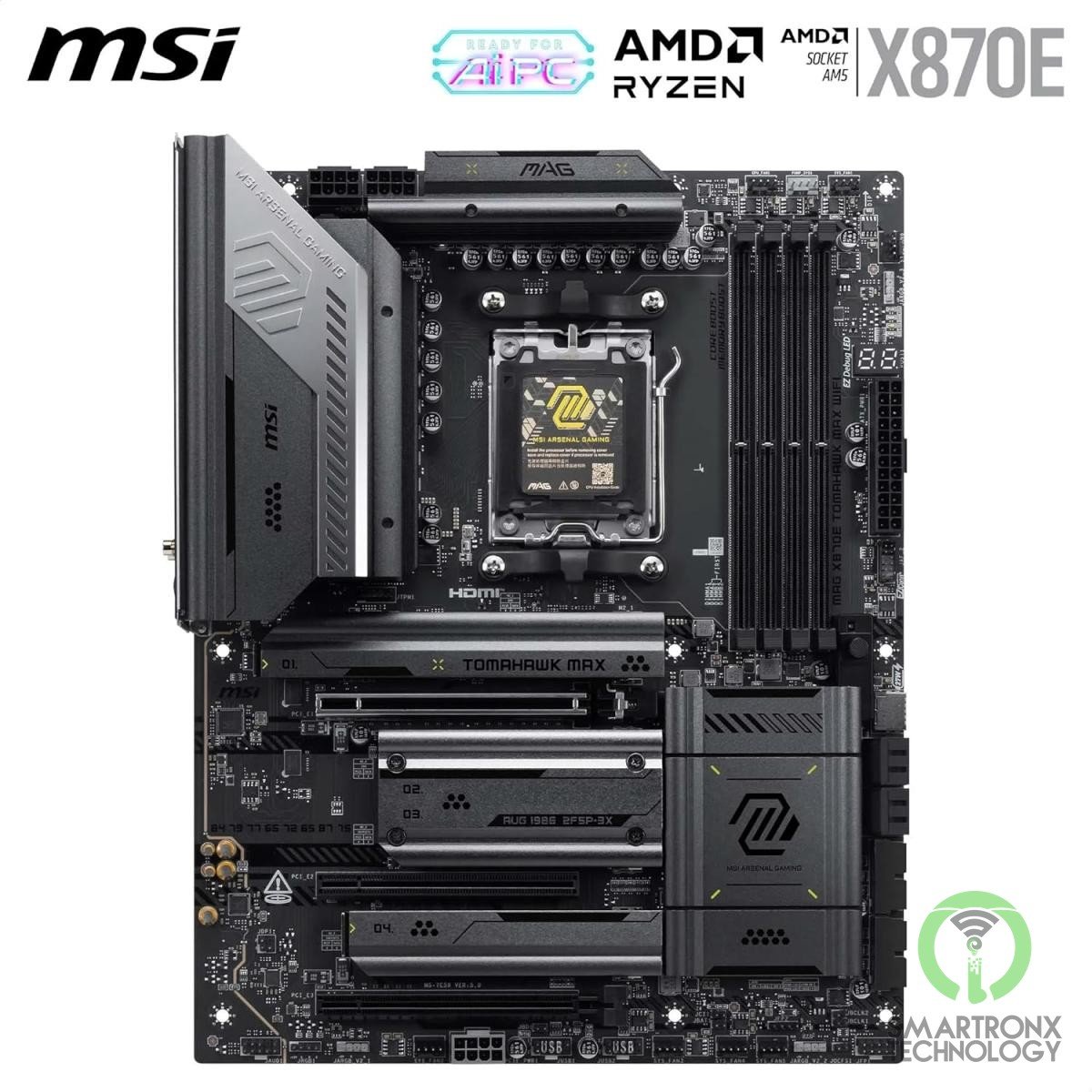

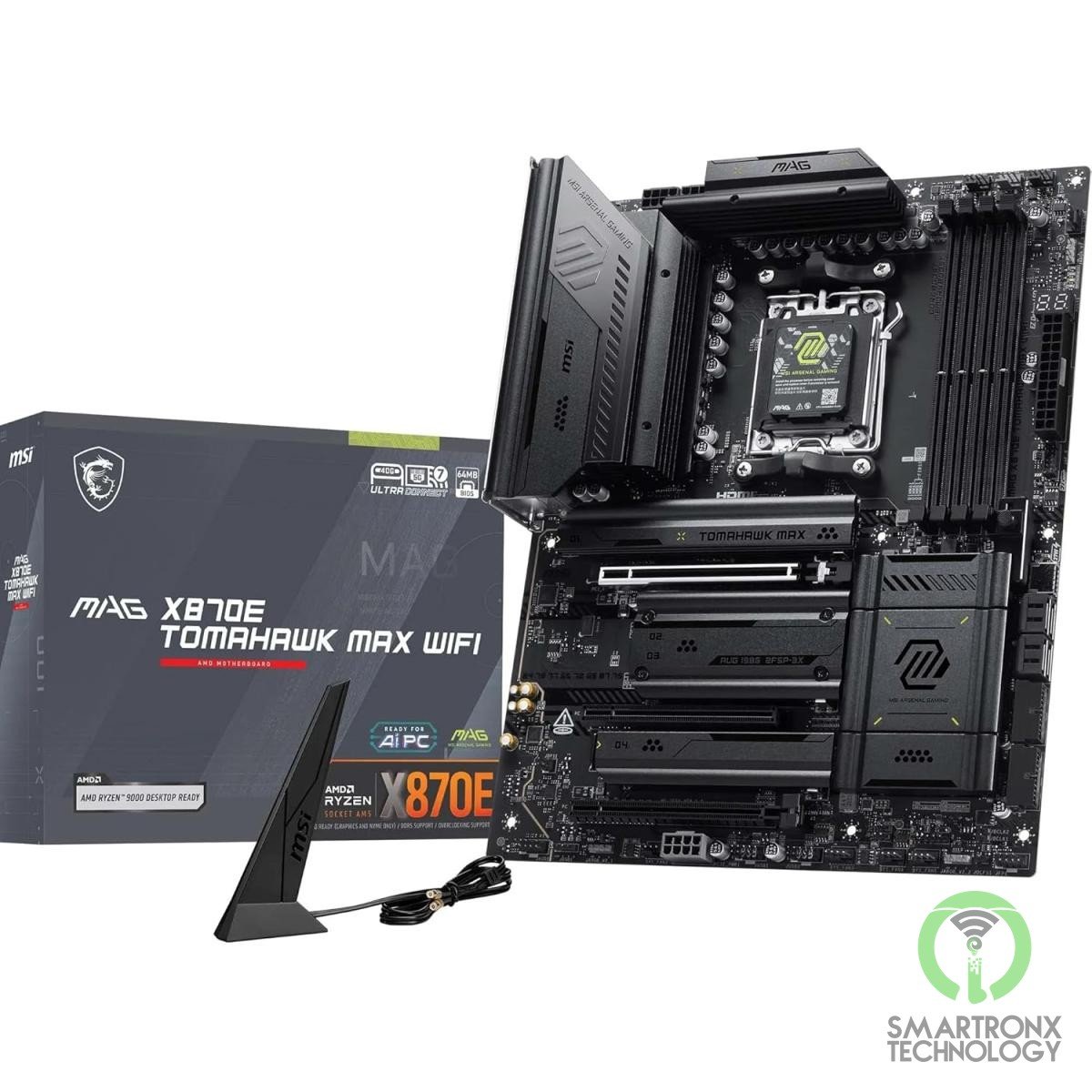

MSI MAG X870E Tomahawk MAX WiFi , ATX – Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5 – DDR5 , Wi-Fi 7, 5G LAN: MSI MAG X870E TOMAHAWK MAX WIFI ATX motherboard with AMD X870E, AM5, DDR5, PCIe 5.0, four M.2 slots, USB4, Wi-Fi 7 and 5G LAN.
المواصفات / Specifications
| Component | Specification |
| الشركة / Brand | MSI |
| الموديل / Model | MAG X870E TOMAHAWK MAX WIFI |
| الشرائح / Chipset | AMD X870E |
| CPU Socket | AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Power Design | 14+2+1 Duet Rail Power System, 80A Smart Power Stage |
| Memory Slots | 4 × DDR5 UDIMM |
| Maximum Memory | 256GB |
| Memory Support | DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s |
| Memory Features | AMD EXPO, Dual-Channel, Non-ECC Un-buffered memory, CUDIMM support in Clock Driver bypass mode |
| Expansion Slots | 3 × PCIe x16 |

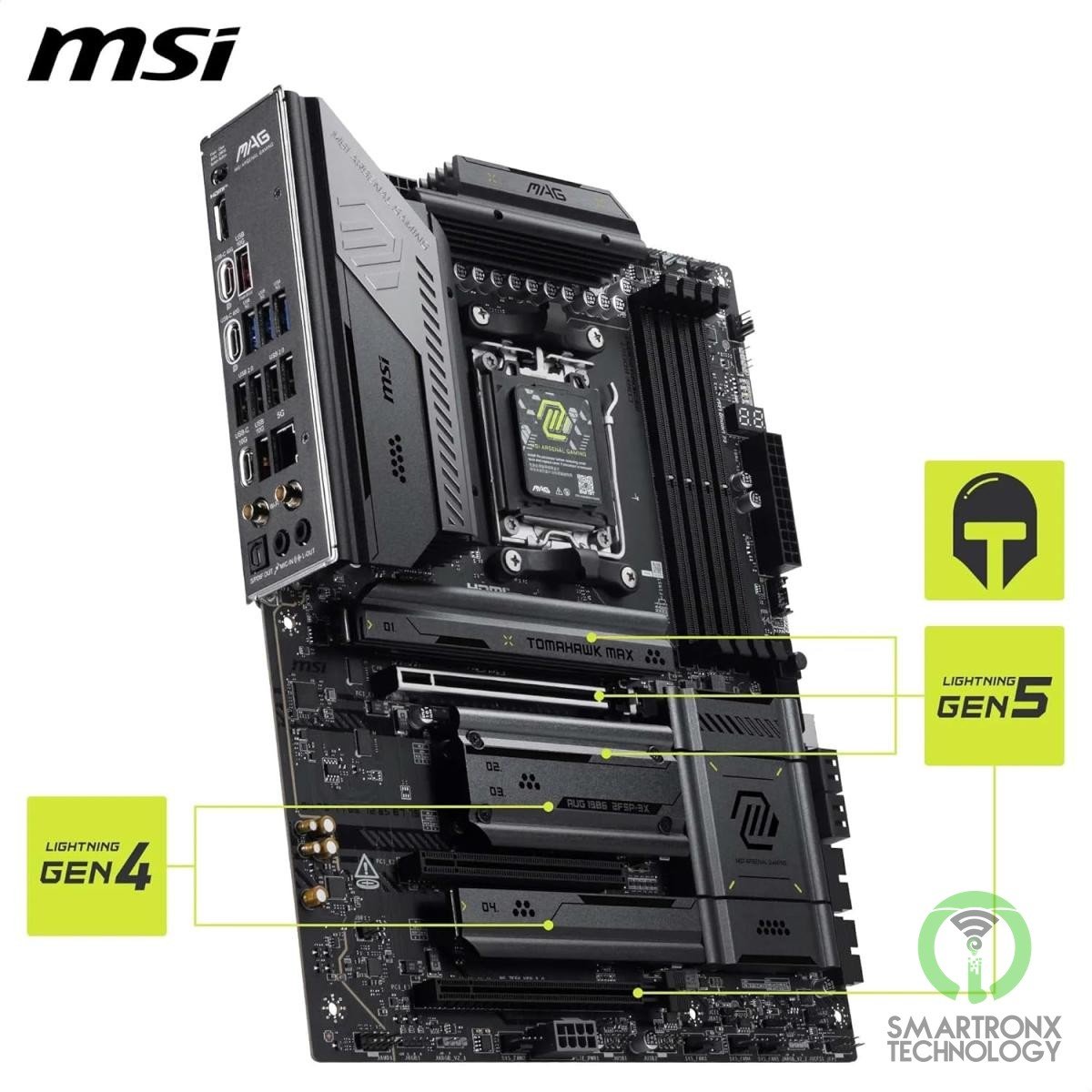

| Primary PCIe Slot | PCIe 5.0 x16 from CPU; operating generation and lanes depend on installed processor |
| Additional PCIe Slots | 1 × PCIe 3.0 x1, 1 × PCIe 4.0 x4 |
| M.2 Storage | 4 × M.2; M.2_1 and M.2_2 up to PCIe 5.0 x4, M.2_3 and M.2_4 up to PCIe 4.0 x4 |
| SATA | 4 × SATA 6G |
